Category: Wire transfer machine
Introduction: Sample display: Main technical parameters: ModelJBR-W-3D-65R Wire transfer machineJBR-W-3D-80R Wire transfer machineWire diameter3-10mm flexible wire 3-6.5mm hard wire3-12mm flexible wire 3-8mm hard wireMaximum wire feeding command value10000.00mm1000…

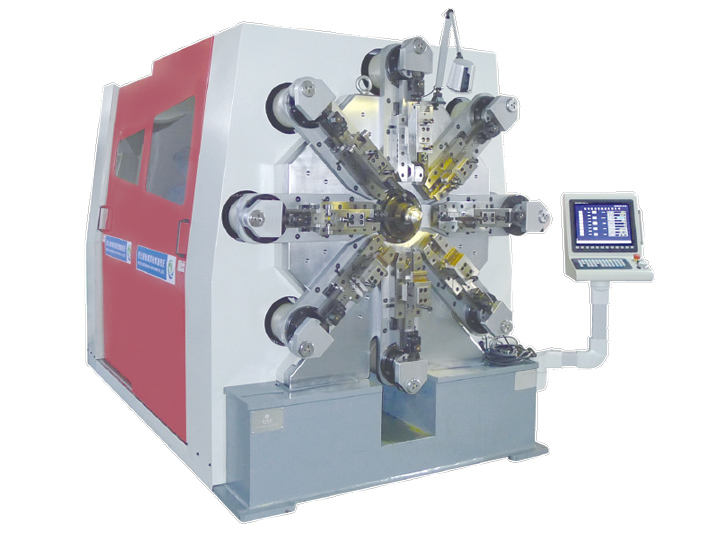

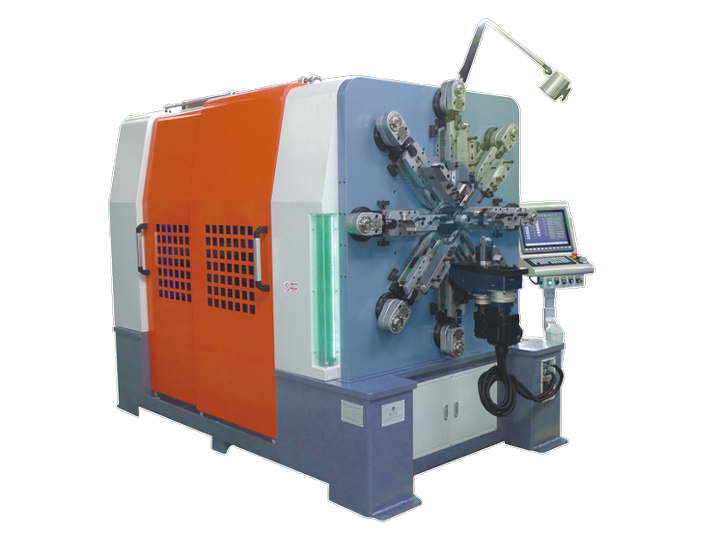

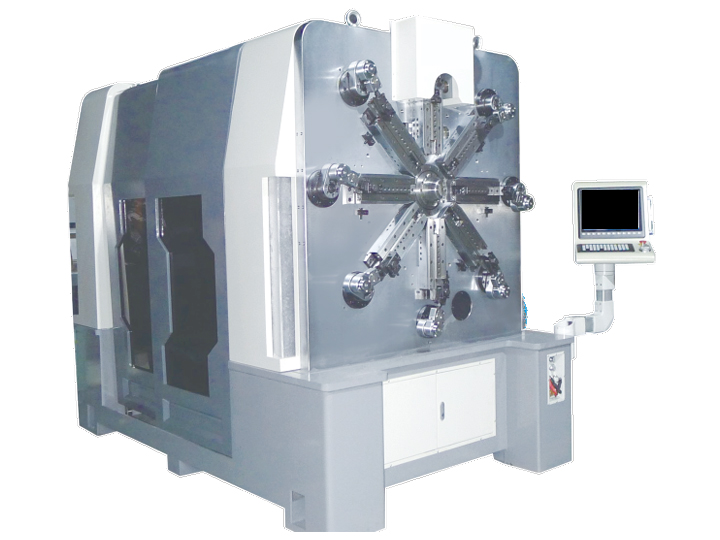

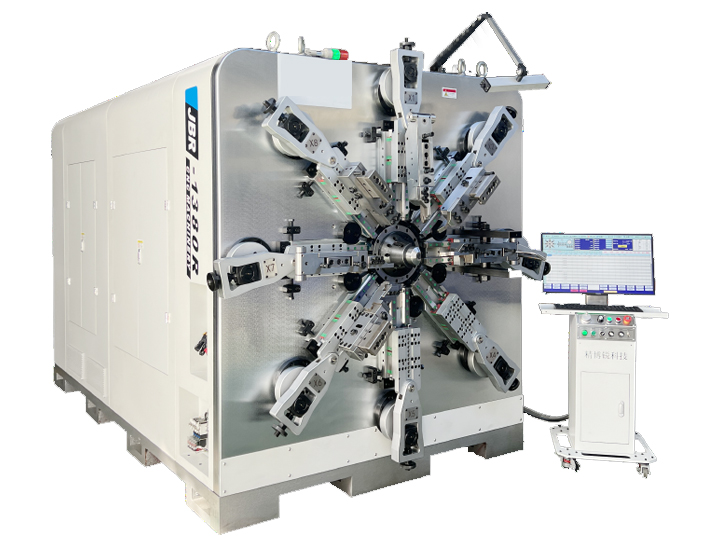

Sample display:
Main technical parameters:
|
Model
|
JBR-W-3D-65R Wire transfer machine
|
JBR-W-3D-80R Wire transfer machine
|
|
|
Wire diameter
|
3-10mm flexible wire 3-6.5mm hard wire
|
3-12mm flexible wire 3-8mm hard wire
|
|
|
Maximum wire feeding command value
|
10000.00mm
|
10000.00mm
|
|
|
Minimum wire feeding command value
|
0.01mm
|
0.01mm
|
|
|
Maximum wire feeding speed
|
100m/min
|
100m/min
|
|
|
Maximum wire feeding length
|
Infinite length
|
Infinite length
|
|
|
Number of axles
|
12 Axis
|
12 Axis
|
|
|
Total output power of servo motor
|
22400w
|
22400w
|
|
|
INPUT VOLTAGE
|
380v
|
380v
|
|
|
Computer specifications
|
Pentium Industrial Computer/Intel
|
Pentium Industrial Computer/Intel
|
|
|
Storage capacity of process data
|
More than 100000
|
More than 100000
|
|
|
Stabilized power (reference)
|
55000w
|
65000w
|
|
|
Pneumatic System
|
Pressure
|
5-6kg/cm
|
5-6kg/cm
|
|
length
|
3700mm
|
3700mm
|
|
|
Machine dimensions
|
Width
|
2000mm
|
2000mm
|
|
、Height
|
1700mm
|
1800mm
|
|
|
Machine weight
|
5500kg
|
6500kg
|
|
